R4 Rear Hub

$200 CAD

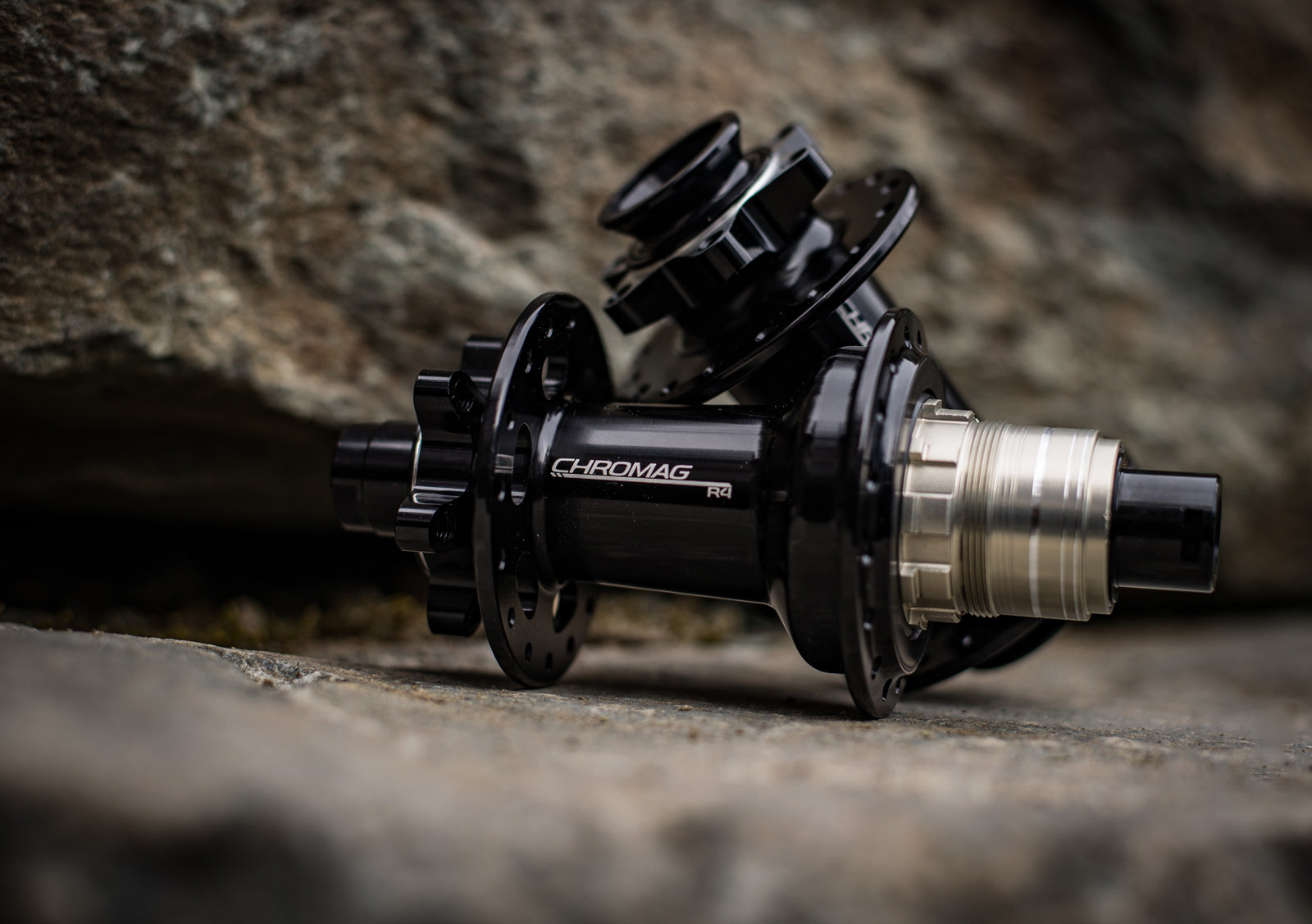

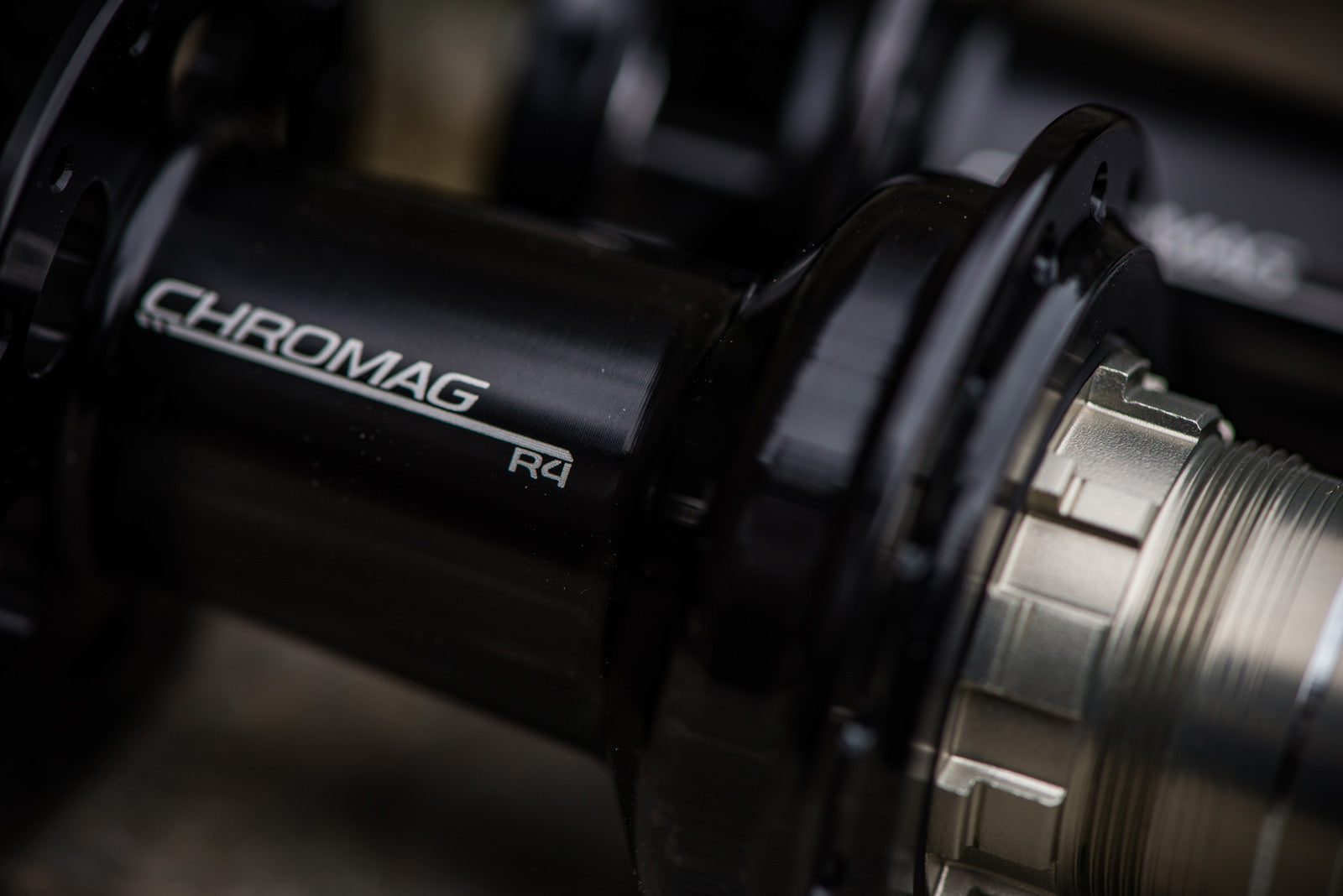

The R4 is designed to be a solid, reliable hub with a durable axle assembly and robust set of bearings.  We're using a tried and tested 4-pawl arrangement with 36 points of simultaneous engagement.  What sets it apart is the large radius that the pawls are positioned on, reducing leverage at the point of engagement.

We opted for a Chromoly steel axle for stiffness and longevity.  Using steel allows a smaller diameter axle which in turn gives us more room to use larger, sealed bearings (we use USA made enduro bearings).  The rear axle assembly uses thread-on end caps which are easy to service and resist compression from the frames axle (they don’t fall off during trailside repairs either!).  R4 front hubs are available with standard or ‘torque’ end caps and rear hubs are available with XD, HG, or Microspline drivers.  We supply all parts for servicing to ensure that R4 hubs can be maintained well into the future!

Please select below which type of driver and/or end caps you need. If in doubt drop us an email


Rather Shop Local? Click Here to Find Your Nearest Dealer

Front

Axle Diameter // 15mm
Spacing // Boost 110mm
End Caps // Regular or RockShox Torque (please request in order notes)
Tubeless // Tubeless Ready, Taped, Valves Included
Spokes // 32

Rear

Axle Diameter // 12mm
Spacing // Boost 148mm
Driver // XD, HG or Microspline (please request in order notes)
Tubeless // Tubeless Ready, Taped, Valves Included
Engagement // 4-pawl, 36 Point
Spokes // 32
